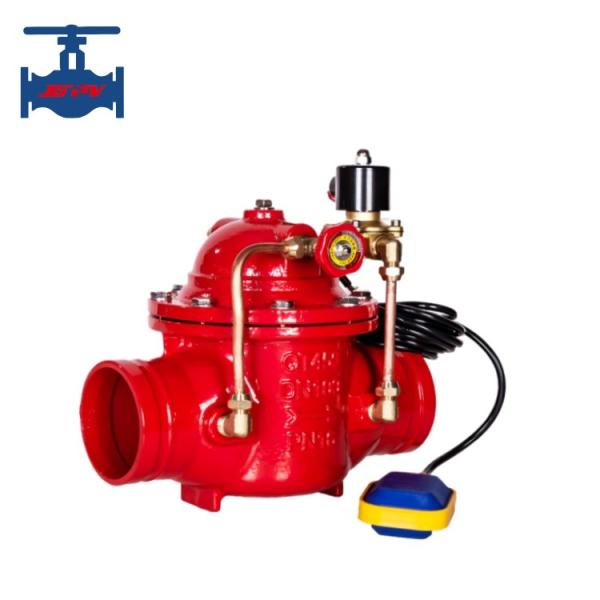

Ductile Iron Diaphragm Type Hydraulic Electric Float Control Valve
Product introduction:
Fire fighting valve products are control accessories on industrial and building pipelines. Fire fighting valve is the most important controlled accessory on industrial and building pipelines, normally consisting of valve body, opening and closing mechanism, and valve cover. Simple structure and reliable sealing.
Most fire valves are connected with clamps, making the complex valve installation and pipeline connection process simple, fast, and convenient. Taking pipeline connection technology a big step forward.
8106X electric float valve is a cable float valve installed on the basis of 600X electric control valve. The electric float valve can set the opening and closing water level to solve the problem of frequent main valve operation
Open and close. This valve is widely used in water tanks for high-rise buildings, urban domestic water, firefighting, industrial and mining enterprises, and in the inlet pipes of water towers.
The 600X hydraulic electric control valve consists of a main valve, electromagnetic guide valve, needle valve, ball valve, micro filter, and pressure gauge to form a hydraulic control connection system. Remote control of valve opening and closing can be achieved through electromagnetic guided valves.
Product technical parameter:
| Nominal Diameter DN (mm) |
65~200 |
| Nominal Pressure PN (MPa) |
1.6 |
| Test Pressure (MPa) |
Strength (water) |
2.4 |
| Enclose (Water) |
1.8 |
| Working temperature |
0~80℃ |
| Medium suitable |
Water |
Product features:
1. Remote control of valve opening and closing can be achieved through cable float valve, and the speed of opening and closing can be controlled.
2. This product uses a pilot valve to control the opening and closing of valves, saving energy. It can replace other large electric devices for valves.
3. This series of valve products is widely used in water supply network systems such as high-rise buildings and residential areas, as well as urban water supply engineering.
